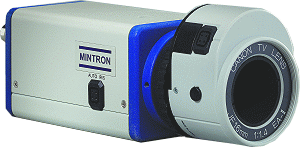

12V1 1/2" B/W LONG CCD CAMERA

MODEL NO.

12V1

TV SYSTEM

EIA

CCIR

IMAGE SENSOR

1/2-inch  CCD  Image  Sensor

CCD TOTAL PIXELS

811(H) X 508(V)

795(H) X 596(V)

SCANNING SYSTEM

525 lines, 60 fields/sec

625 lines, 50 fields/sec

SYNC SYSTEM

Internal / VD-Lock (option)

MINIMUM

ILLUMINATION

Legacy mode

0.05 Lux      ( F1.2 , 5600ºK 30 IRE )

Star light Mode

0.0005 Lux     ( F 0.8 , 5600ºK 10 IRE )

RESOLUTION

600 TVL

WHITE BALANCE

Mode

ATW / AWC / FIX  ( Zero color rolling)

Range

3200 ~ 10000 ºK   ( 2200 ~ 15000 ºK with S Filter)

GAIN CONTROL

Mode

AGC (ON / OFF)

Range

0 ~ 18dB

S / N  RATIO

52dB ( MIN ) / 60dB ( TYP )  (AGC OFF)

ELECTRONIC SHUTTER

1/60~1/120,000 sec.

1/50~1/120,000 sec.

AUTO IRIS

A.E.S. / DC

OSD DISPLAY

ON SCREEN DISPLAY FOR ALL CONTROL

5 PUSH SW

FOR OSD CONTROL PANEL

FLICKERLESS

SELECTABLE BY OSD MANUAL

MIRROR FUNCTION

SELECTABLE BY OSD MANUAL

UP SIDE DOWN

SELECTABLE BY OSD MANUAL

B.L.C. FUNCTION

SELECTABLE BY OSD MANUAL

IMAGE ENHANCE

SELECTABLE BY OSD MANUAL

DIGITAL ZOOM (2X)

SELECTABLE BY OSD MANUAL

NEGATIVE IMAGE

SELECTABLE BY OSD MANUAL

MASKING AREA

SELECTABLE BY OSD MANUAL

AGC GAIN ADJUSTMENT

SELECTABLE BY OSD MANUAL

VIDEO OUTPUT

Composite & Y/C output 1.0V p-p at 75 ohm

GAMMA CORRECTION

0.45

OPERATION TEMPERATURE

-20℃ TO 50℃

OPERATIONAL  HUMIDITY

within 85﹪RH

POWER  SUPPLY

DC12V±1V / 180mA

    *The specifications and appearance of the product may changed without notice.

    *ATW: Auto tracking white balance.

    *AWC: One push lock white balance.

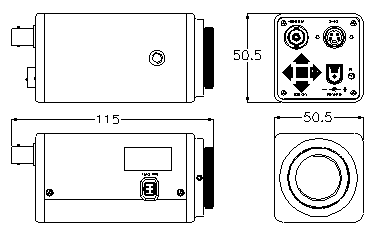

    Dimension  (Unit : mm)
