• Feature
  • Specification
  • Remark
HD-SDI converter

Support HD-SDI in and converts to HDMI output
Support HD-SDI loop-out
Support video format 720p@25/30/50/60 1080@p25/30 1080i@50/60
Built-in Equalizer and re-clock
Support HD Coax-link application, which is able to transmit HD-SDI video and audio, power and Ctrl(bi-directional) are passing in the same coaxial cable. Ctrl(UCC): to transit RS-232 control signal and to control camrea funtions. Power over cable : to send out power supply over cable
BNC-Inputs Support Video Format: HD-SDI 720p@25/30/50/60 1080@p25/30 1080i@50/60
Embedded Audio : 2ch
DC Power out supply (power over cable)automatically.
AUX linking: bi-directional communication
BNC-Outputs Support  loop-out Format: 720p@25/30/50/60 1080@p25/30 1080i@50/60
Embedded Audio : 2ch
HDVI -Outputs Supported Video-out
720p 25/30/50/60,1080i 50/60 1080p 25/30
without Audio
DC Jack
Power supply in:12V~24VDC Regulated/ 500mA
AUX-port: RS-232 for camera control

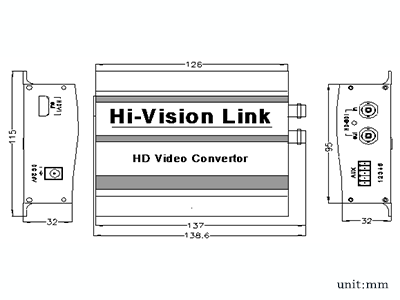

See dimension
Order info.

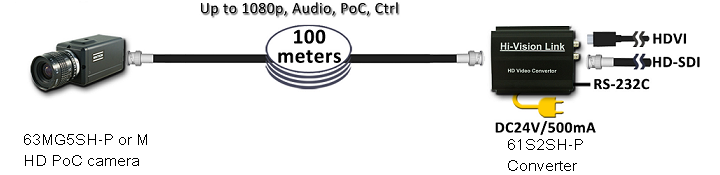

Application daigram
 Power over cable
