MHD-63MN1PH-DIRVF-WB3-LED

  • Feature
  • Specification
  • Remark

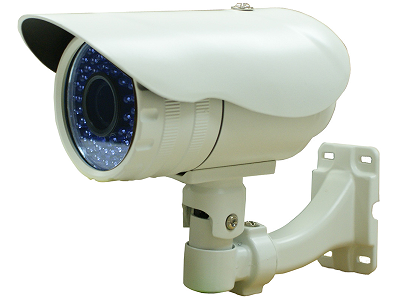

2 Megapixels HD-SDI IR Bullet Camera

Full HD 1080p /720p HD-SDI
HDV and SDV video out simultaneously
WDR(long with short exposure tech)
Lens:ICR/DC/Vari-focus 2.8~12 mm
Vandal Proof/Water Proof
DNR/AGC/3DNR/BLC/HLC/XDR/MIRROR/FLIP
White Balance -ATW/AWB/R-Y/R-B
OSD
SERIES NAME. MN1P/ 2.1MEGA WDR 1080p HD-SDI/CVBS CAMERA
IMAGE SENSOR 1/3” Megapixel CMOS WDR Sensor (Rolling shutter)
TOTAL PIXELS 2010(H) X 1108(V) approx. 2.1M pixel
EFFECTIVE PIXELS 1944(H) X1092(V)
SCANNING  SYSTEM Progressive scan
SYNC  SYSTEM Internal
LENS
    2.8~12 mm /DD/ICR (IR-Cut removable)
MINIMUM  ILLUMINATION 0.05 Lux @ AGC on /Sens-up off/  F1.2
RESOLUTION Over 1000 TV-Line
ICR-Set  CONTROL Auto, Ext-Control • ( Approx.)
IR-ILLUMINATOR: 60pcs LED IR angle/Distance:60°/40 meter
GAIN  CONTROL Auto
EXPOSURE CONTROL Auto, Manual, IRIS priority
S / N  RATIO  48dB (TYP) (Gamma, Aperture, AGC OFF)
AUTO IRIS AES / ALC-DC lens
VIDEO FORMAT OUT 1080p 25/30Hz;720p 50/60Hz
DNR CONTROL Off/Low/Middle/High
DIGITAL VIDEO OUT(HDV) HD-SDI
ANALOG VIDEO OUT(SDV) CVBS
GAMMA CORRECTION 0.45 / 0.5 / 0.55 / 0.6 / 0.65
DIGITAL ZOOM 1.0~8.0
PROTOCOL RS-485(Optional function)
FUNCTION Brightness/Sens-up/Level(HLC)/BLC/WDR/XDR
Shading/Privacy/Motion...
OPERATION  TEMPERATURE -20℃ TO 50℃
OPERATIONAL  HUMIDITY within 85﹪RH
POWER  SUPPLY DC12V±1V / 500mA(Approx.)
(DC12V/AC24VDual Power -Optinal Function)

Order info.
MHD-63MN1PH-DIRVF-WB3 (DC12V/ICR)
MHD-63MN1PH-DIRVF-WB3-LED(DC12V/ICR/LED)
