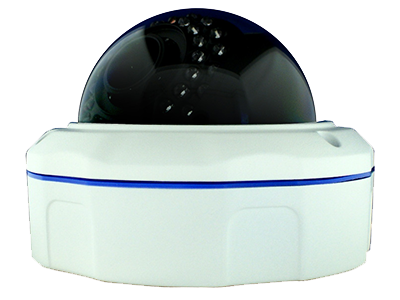

2 Megapixels HD-SDI/Coax-Link IR Dome Camera

Full HD 1080p /720p HD-SDI
HDV and SDV video out simultaneously
WDR(long with short exposure tech)
HD,Ctrl,POC over
Lens:ICR/DC/Vari-focus 2.8~12 mm
Vandal Proof/Water Proof/3Axis adjustable
DNR/AGC/3DNR/BLC/HLC/XDR/MIRROR/FLIP
White Balance -ATW/AWB/R-Y/R-B
OSD

SERIES NAME.	MN1P/ 2.1MEGA WDR 1080p HD-SDI/CVBS CAMERA
IMAGE SENSOR	1/3” Megapixel CMOS WDR Sensor (Rolling shutter)
TOTAL PIXELS	2010(H) X 1108(V) approx. 2.1M pixel
EFFECTIVE PIXELS	1944(H) X1092(V)
SCANNING  SYSTEM	Progressive scan
SYNC  SYSTEM	Internal
LENS	2.8~12 mm /DD/ICR (IR-Cut filterremovable)
MINIMUM  ILLUMINATION	0.05 Lux @ AGC on /Sens-up off/  F1.2
RESOLUTION	Over 1000 TV-Line
ICR-Set  CONTROL	Auto, Ext-Control
IR-ILLUMINATOR:	30pcs LED ;IR angle/Distance:60°/40 meter
GAIN  CONTROL	Auto
EXPOSURE CONTROL	Auto, Manual, IRIS priority
S / N  RATIO	48dB (TYP) (Gamma, Aperture, AGC OFF)
AUTO IRIS	AES / ALC-DC lens
VIDEO FORMAT OUT	1080p 25/30Hz;720p 50/60Hz
DNR CONTROL	Off/Low/Middle/High
DIGITAL VIDEO OUT(HDV)	HD-SDI
ANALOG VIDEO OUT(SDV)	CVBS
GAMMA CORRECTION	0.45 / 0.5 / 0.55 / 0.6 / 0.65
DIGITAL ZOOM	1.0~8.0
PROTOCOL	RS-485(Optional function)
FUNCTION	Brightness/Sens-up/Level(HLC)/BLC/WDR/XDR Shading/Privacy/Motion...
OPERATION  TEMPERATURE	-20℃ TO 50℃
OPERATIONAL  HUMIDITY	within 85﹪RH
POWER  SUPPLY	DC12V±1V / 450mA(Approx.) (DC12V/AC24VDual Power -Optinal Function)

Order info.
MHD-83MN1PH-PIRVF-LD2-LED
