MHD-63MN1PH-SDICR
  • Feature
  • Specification
  • Remark

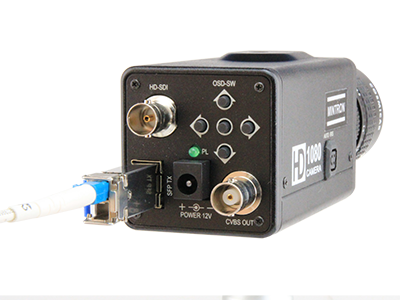

2 Megapixels SFP Box Camera

Full HD 1080p/16-Bit Uncompressed HD-Video zero latency video
HDV(HD-SDI / SFP Fiber out ) simultaneously
Fiber SFP slot (Without Doungle)
WDR(long with short exposure tech)
Day&Night IR-cut removable control
DNR/AGC/3DNR/BLC/HLC/XDR/MIRROR/FLIP
White Balance -ATW/AWB/R-Y/R-B
Remote OSD
SERIES NAME. MN1P/ 2.1MEGA WDR 1080p HD-SDI/CVBS CAMERA
IMAGE SENSOR 1/3” Megapixel CMOS WDR Sensor (Rolling shutter)
TOTAL PIXELS 2010(H) X 1108(V) approx. 2.1M pixel
EFFECTIVE PIXELS 1944(H) X1092(V)
SCANNING  SYSTEM Progressive scan
SYNC  SYSTEM Internal
LENS C/CS mount
MINIMUM  ILLUMINATION 0.05 Lux @ AGC on /Sens-up off/  F1.2
RESOLUTION Over 1000 TV-Line
ICR-Set  CONTROL Auto, Ext-Control(ICR filter Optinal Function)
GAIN  CONTROL Auto
EXPOSURE CONTROL Auto, Manual, IRIS priority
S / N  RATIO  48dB (TYP) (Gamma, Aperture, AGC OFF)
AUTO IRIS AES / ALC-DC lens
VIDEO FORMAT OUT 1080p 25/30Hz;720p 50/60Hz
DNR CONTROL Off/Low/Middle/High
DIGITAL VIDEO OUT(HDV) HD-SDI/Fiber SFP slot (Without Doungle)
ANALOG VIDEO OUT(SDV) CVBS
GAMMA CORRECTION 0.45 / 0.5 / 0.55 / 0.6 / 0.65
DIGITAL ZOOM 1.0~8.0
PROTOCOL Pelco
FUNCTION Brightness/Sens-up/Level(hlc)/BLC/WDR/XDR
Shading/Privacy/Motion...
OPERATION  TEMPERATURE -20℃ TO 50℃
OPERATIONAL  HUMIDITY within 85﹪RH
POWER  SUPPLY DC12V±1V /350mA

Order info.
Model:MHD-63MN1PH-SDICR ---1080P SFP camera(DV12V W/I ICR)
