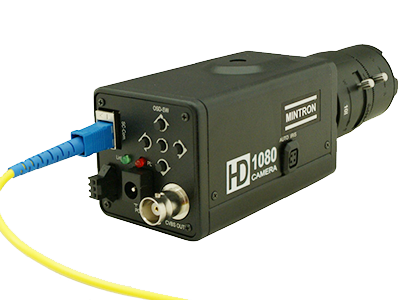

CCD Megapixels FiberLink Box Camera

Full HD 1080p/16-Bit Uncompressed HD-Video zero latency video
One core optic-fiber to deliver HD-video , audio and Ctrl RS-232
Transmit up to 2 km without Optical Attenuatio
HDV(FiberLink out) simultaneously
WDR(long with short exposure tech)
Day&Night IR-cut removable control
DNR/AGC/3DNR/BLC/HLC/XDR/MIRROR/FLIP
White Balance -ATW/AWB/R-Y/R-B
Remote OSD

MODE NO.	MHD-93MG6RH-DICR
IMAGE SENSOR	Megapixel CCD Sensor
CCD TOTAL PIXELS	1329(H) X 976(V) approx. 1.3M pixel
SCANNING  SYSTEM	Progressive scan
SYNC  SYSTEM	Internal
MINIMUM  ILLUMINATION	0.1 Lux @ AGC on /Sens-up off/  F1.2  Color to B/W
RESOLUTION	Over 800 TV-Line (*1)
Lens	Standard Type: C/CS mount with IR-Cut filter
ICR-Set  CONTROL	Auto, External-control(Optional function)
GAIN  CONTROL	Auto, manual
EXPOSURE CONTROL	Auto, manual, IRIS priority
S / N  RATIO	48dB (TYP) (Gamma, Aperture, AGC OFF)
AUTO IRIS	AES (global shutter) / ALC-DC lens
MULTI-FORMAT VIDEO OUT	HDV 720p50/60Hz;720p 25/30Hz1080p25/30Hz;1080i 50/60 Hz SDV NTSC/PAL
DNR	3D/2D Noise Reduction (Off/Low/Middle/High)
GAMMA  CORRECTION	CRT / LCD / 1.0
DIGITAL ZOOM	4 times
DIGITAL VIDEO OUT	Fiber-LINK SC type fiber connector (Ps, reciver site is HD-SDI or HDMI out)
ANALOG VIDEO OUT	CVBS NTSC/PAL(Selectable by OSD)
Protocol	RS-485(Optional function)
OSD CONTROL	Peak/ BLC/Fixed shutter/XDR /AGC/ Fixed Gain/Slow shutter/3DNR Control/Day-night/Fog-Reduction / Eclipse/Enhance H-V/UV-Matrix/AWB /ATW/R-Y/B-Y/Freeze/Priority/Motion Detection/Digital P.T.Z /Posi-Negative/Privacy MASK/Cross line/Freeze/Com-ID/color bar
OPERATION  TEMPERATURE	-20℃ TO 50℃
OPERATIONAL  HUMIDITY	within 85﹪RH
POWER  SUPPLY	DC12V±1V / 500mA

Order info.
Model:93MN1HP-DICR ---1080P FiberLink BOX camera(DV12V W/I ICR)
Model:93MG6HP-DICR ---CCD FiberLink BOX camera(DV12V W/I ICR)

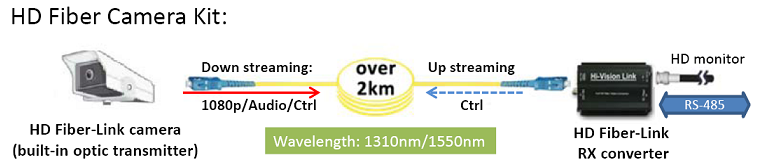

Application Guide:
