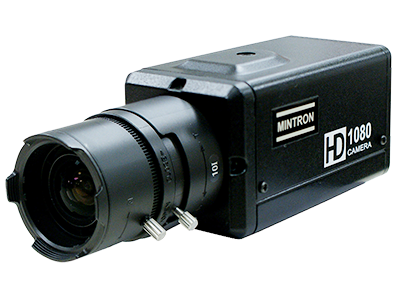

2 Megapixels HDMI Box Camera

Full HD 1080p /720p DVI/HDMI(High Difinition Multimedia Iterface)
HDV and SDV video out simultaneously
WDR(long with short exposure tech)
Color & BalckWhite
DNR/AGC/3DNR/BLC/HLC/XDR/MIRROR/FLIP
White Balance -ATW/AWB/R-Y/R-B
OSD

SERIES NAME.	MN1P/ 2.1MEGA WDR 1080p HD-SDI/CVBS CAMERA
IMAGE SENSOR	1/3” Megapixel CMOS WDR Sensor (Rolling shutter)
TOTAL PIXELS	2010(H) X 1108(V) approx. 2.1M pixel
EFFECTIVE PIXELS	1944(H) X1092(V)
SCANNING  SYSTEM	Progressive scan
SYNC  SYSTEM	Internal
LENS	C/CS mount
MINIMUM  ILLUMINATION	0.05 Lux @ AGC on /Sens-up off/  F1.2
RESOLUTION	Over 1000 TV-Line
ICR-Set  CONTROL	Auto, Ext-Control(ICR filter Optinal Function)
GAIN  CONTROL	Auto
EXPOSURE CONTROL	Auto, Manual, IRIS priority
S / N  RATIO	48dB (TYP) (Gamma, Aperture, AGC OFF)
AUTO IRIS	AES / ALC-DC lens
VIDEO FORMAT OUT	1080p 25/30Hz;720p 50/60Hz
DNR CONTROL	Off/Low/Middle/High
DIGITAL VIDEO OUT(HDV)	HD-DVI(HDMI)
ANALOG VIDEO OUT(SDV)	CVBS
GAMMA CORRECTION	0.45 / 0.5 / 0.55 / 0.6 / 0.65
DIGITAL ZOOM	1.0~8.0
PROTOCOL	RS-485(Optional function)
FUNCTION	Brightness/Sens-up/Level(hlc)/BLC/WDR/XDR Shading/Privacy/Motion...
OPERATION  TEMPERATURE	-20℃ TO 50℃
OPERATIONAL  HUMIDITY	within 85﹪RH
POWER  SUPPLY	DC12V±1V / 200mA (DC12V/AC24VDual Power -Optinal Function)

Order info.
Model:MHD-13MN1PH-D ---1080P HDVI BOX camera(DV12V ICR)
