EX-SDI cameras(HD Long reached cable 350 metre )

EX-SDI VLC Dome	EX-SDI VLC Bullet-VF
EX-SDI VLC C/CS Mount

Accessories:

Tx/Rx VLC converter

Genneral:

EX-SDI/VLC(Visually Lossless Codec) is that HD Video is enable to pass “SDeye” technology, which is able to get 720p/1080p long reach transmission solution by 270Mbps lower data rate , therefore, the cable distance can get stretching  as well as remain high quality  image , in additionally ,there is no any negative effect such as decreasing resolution, skew color..so on , even if the receiving monitor is at very far away .

Benefit:

>>Long reach solution with HD imaging
>>be able to transmit HD imaging over coaxial cable
5C2V up to 350M + without repeater
3C2V up to 150M + without repeater
>>VLC(Visually Lossless Codec)Technical
Reducing bandwidth carried on existing CCTV cable No frame drop /Real time delivery /Hi-quality HD 720p/1080p video End to End connecting Plug and play –No needed any network configuration

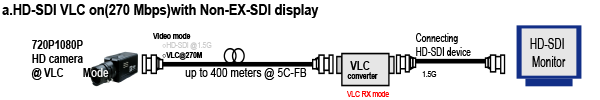

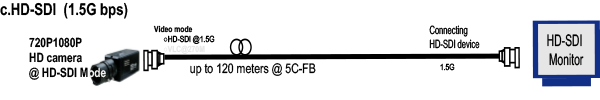

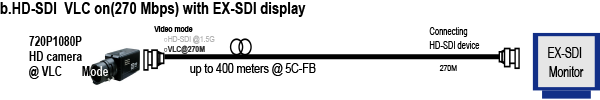

Application Diagram
